Pull by Priority - Wait for Area Capacity

This feature is no longer part of ProcessModel

Model objects are no longer part of ProcessModel. They were prebuilt sample models in the legacy software that you opened and copied the pieces you needed from into your own model. The technique shown here is now built into ProcessModel.

LegacyHow this worked in the previous version

When you need to pull items from a queue by priority and hold items in the queue until capacity of a group of activities is available.

Where to Find the Model Object

The following model object can be found in the model objects directory:

• Flow Control - Pull by Priority - Wait for Area Capacity

Difficulty Level

• Ease of Use: Easy
• Ease of Modification: Easy

How to Use the Model Object

• Open Your Model: Open your model or create a new blank model.

• Insert the Model Object into Your Model

• Locate the model object Pull by Priority - Wait for Area Capacity and select the insert button.

• Move the cursor to the point of insertion and left mouse-click. The upper left corner of the **model object **will be inserted at the location of the mouse-click.

• Connect to Your Model

• **Create **a percentage route from the point in your **model **where you would like to pull entities by priority and **connect **it to Queue 1.

2. **Connect **the percentage route coming from **Queue 1 **to the rest of your model.

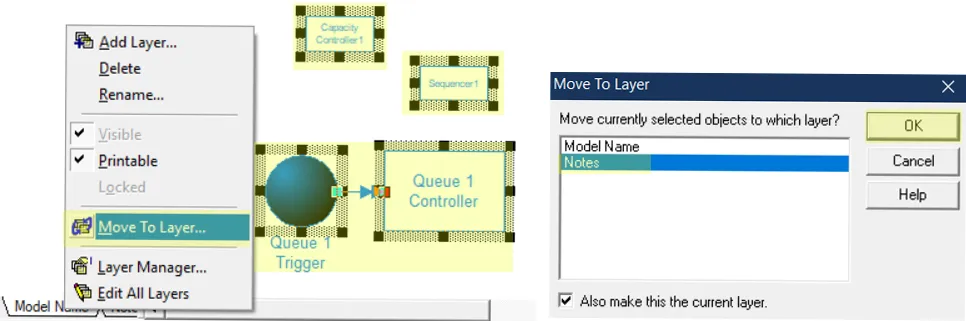

• Move Objects: Move all blue objects to a notes layer on your model.

• Define Values

• **Define **the values for scenario parameter **s_LoopDelay1 **to change the amount of time between re-sequence of entities.

• Define the values for attribute **a_Priority **before the entity arrives at Queue 1.

• Update Objects: **Change **the name of **Queue 1 **to what maybe appropriate for your model.

• Review Model**

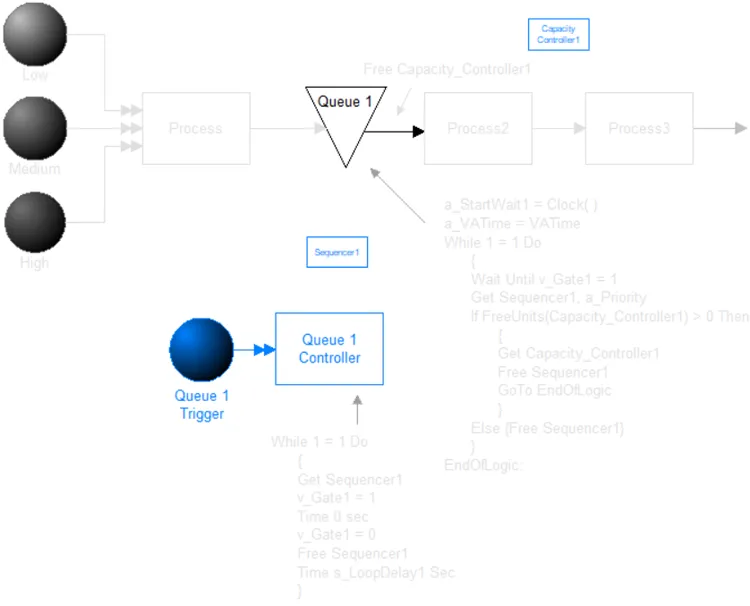

• Sequencer1**: This is a resource with the purpose of pulling then highest priority items to the front of the queue regardless of the capacity of the receiving activities.

2. Capacity Controller1: This is a resource with the purpose of controlling the capacity of several activities.

• Completion: The model object is now integrated into your model, you should now be able to save and then simulate the model.

Controls Usage

Attributes:

• a_VATime: To reset the value added time when the entity leaves queue.
• a_Priority: Used to set the priority of entities.
• a_StartWait1: To know the time when the entity entered the queue.

Variables:

• v_Gate1: The gate that trigger checks which way an entity should move.
• v_Waiting_Time1: The waiting time for all entities which enter Queue 1.

Scenario Parameters:

• s_LoopDelay1: The amount of time between re-sequence of entities in the queue.
